TrolMaster Carbon-X CO2 Alarm System CDA-1

  • TrolMaster Carbon-X CO2 Alarm System CDA-1
  • TrolMaster Carbon-X CO2 Alarm System CDA-1
  • TrolMaster Carbon-X CO2 Alarm System CDA-1
691,25 EUR
622,13 EUR
/ szt.
You save 10% (69,12 EUR).

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days for a return
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
Thanks to the integration with cheap returns you can purchase without stress and be sure that the return process will be hassle free.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.
  • Input Voltage: 100-240VAC, 50/60Hz
  • Max Sensors: 13 pcs per Alarm channel
  • Max controlled output: 40 pcs
  • Working Environment: Temperature 32-122°F, Humidity

The TrolMaster Carbon-X system provides critical monitoring of CO2 levels for up to 13 separate zones / rooms. The system can have both high level (up to 30,000ppm) alerts, as well as low level (5,000ppm) alerts. Both high and low level limits are user-adjustable to meet local regulations for supplemental CO2 use indoors.


The Carbon-X system can also control various devices such as ventilation fans, dampers, main CO2 valves as well as to send a signal to the fire department by interfacing to the fire / alarm panel in the facility. Automatic shut-off of CO2 is accomplished by wiring the facility’s main CO2 solenoid in series with one of the system control modules. The settings for each of the devices connected to the system are user-selectable for easy customization.


Each room monitored by the Carbon-X will also require an audio-visual alarm to alert the personnel to the level of CO2 in the area, and whether or not it is safe to occupy the area.

The TrolMaster app can be used to remotely monitor the Carbon-X as well as to receive user-alert / notifications in the case of high CO2 levels are detected.

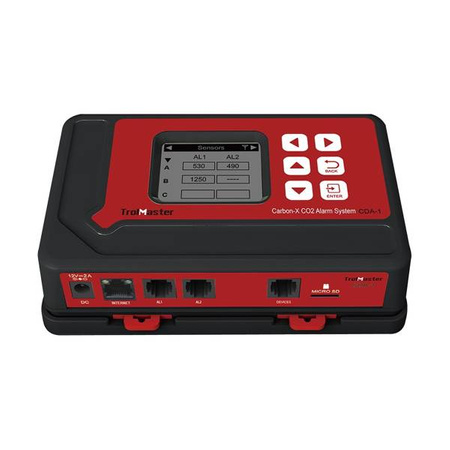

The CDA-1 is the brain of the system.


*Internet Connection Note: TrolMaster's main controllers can be connected to the internet in order to use the available APP. Most internet services available including land-based and cellular internet are compatible. However, HughesNet / Viasat Satellite internet is NOT compatible with TrolMaster controllers at this time.

*Firmware Update Note: To update firmware on the TrolMaster's controllers and modules, you must use a Micro SD card that is 32GB or less capacity.


Package Content:

1x CO2 Alarm System(CDA-1)

2x16ft RJ12 Cable

1x12V Power Adapter



Input Voltage:                       100-240VAC, 50/60Hz

Max Sensors:                        13 pcs per Alarm channel

Max controlled output:           40 pcs

Working Environment:            Temperature 32-122°F, Humidity<=90%

Package Dimensions:             275mm(L) x 164mm(W) x 62mm(H)
